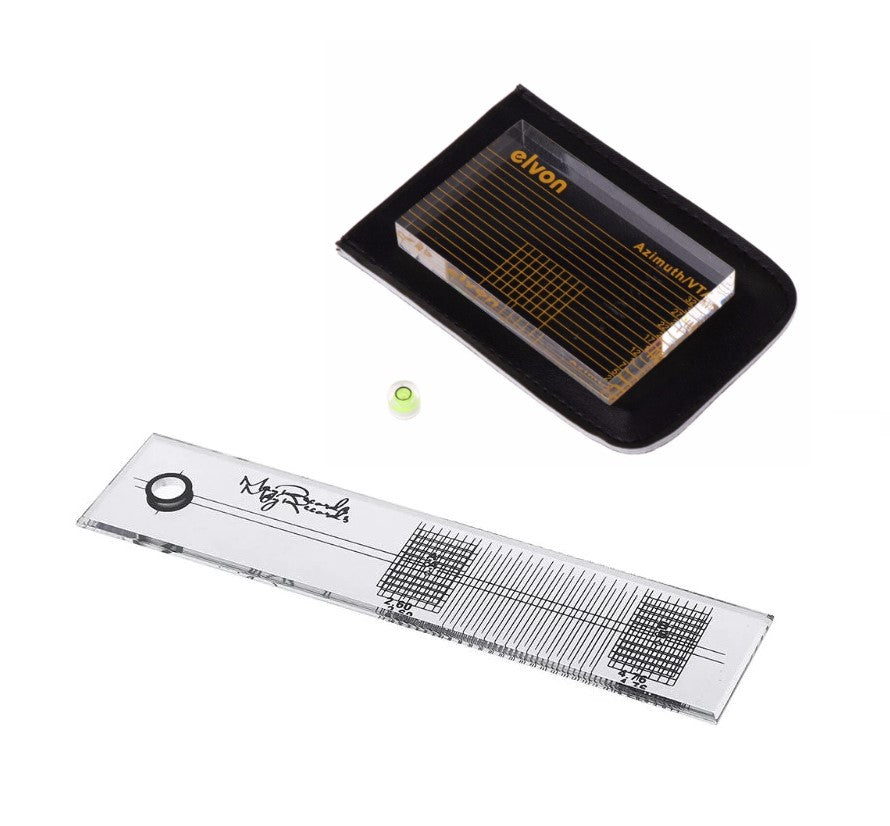

Deluxe Turntable Setup Tool Bundle – Azimuth Alignment Block & Protractor

Elvon Azimuth + May Records Deluxe Mirror Protractor Turntable Tool Gift Bundle.

Two vital tools for accurate turntable setup; the humble azimuth and protractor.

Use the azimuth to check and set your cartridge's horizontal angle and alignment, use the protractor for achieving correct headshell angle and overhang. Get the best out of your gear whatever your setup with this two piece bundle for turntable setup.

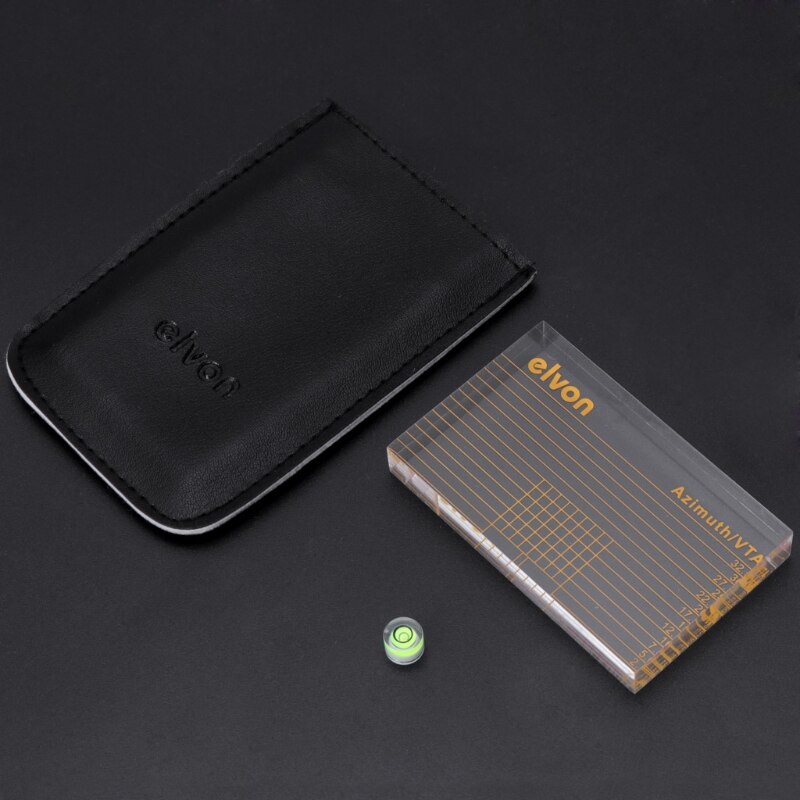

The azimuth comes in a protective case and with a bubble spirit level for the headshell, and the protractor comes with a microfibre cleaning cloth and is in a mirror finish to make the job of accurate setup easier.

Two of our most popular items together in one money-saving bundle.


Contents:
1 x Elvon Azimuth
1 x Azimuth case
1 x Micro bubble spirit level
1 x Mirrored Protractor/Ruler
1 x Microfibre Cleaning Cloth

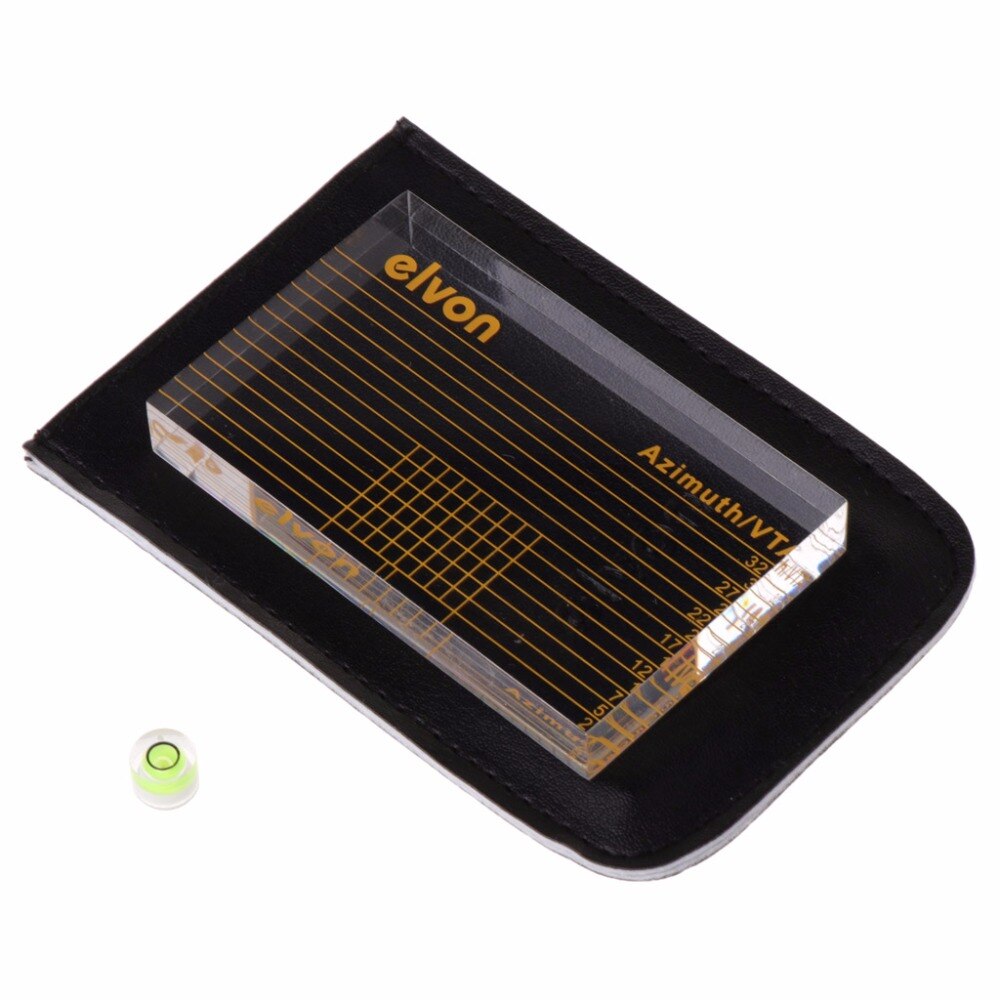

Azimuth Specifications:
Colour: Clear
Material: Acrylic
Size: 72mm x 45mm / 2.83" x 1.77"

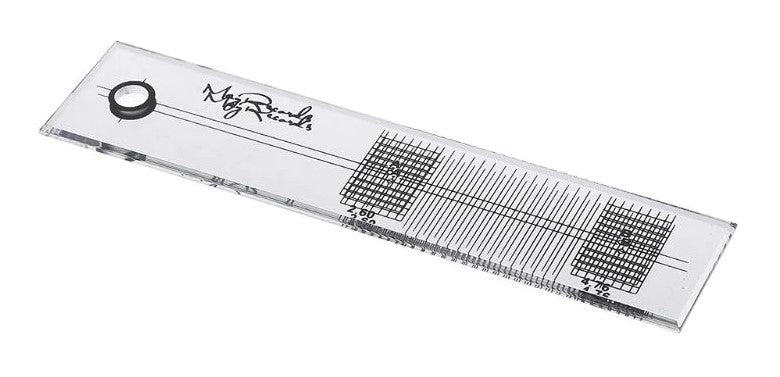

Protractor Specifications:
Alignment System: Baerwald
Colour: Mirror finish
Material: Acrylic
Thickness: 10mm / .39"

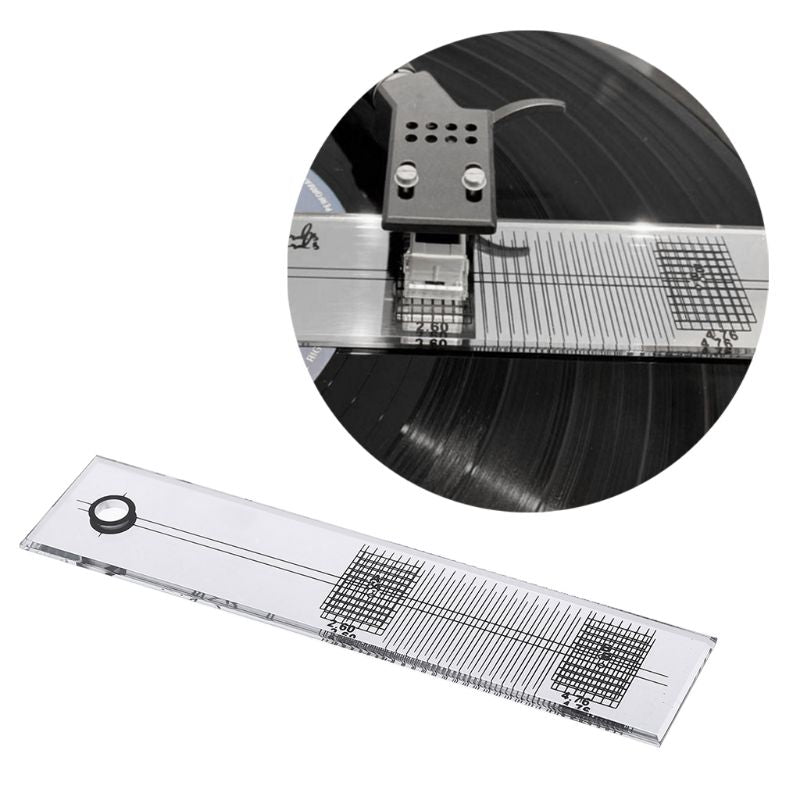

PROTRACTOR - Instructions for Use:
1. Place the adjustment ruler on the turntable spindle.
2. Align the stylus with the mark at point A. Adjust the angle of the head so that the leading edge of the cartridge and the horizontal line on the scale are flush.
3. Align the stylus with the mark at point B. Check that the leading edge of the cartridge is square with the grid lines on the scale.
4. Repeat steps 2 & 3 until the cartridge edge is square at both points. Simply loosen the screw to move the cartridge, and after tightening, tighten the cartridge fixing screw to secure in place.
